Products - Windows
Series 200T \| Series 4000 \| Series 4000BG

	Series 200T Windows

Lynbrook's 200-T Series window is a monumental thermal barrier window. This flush framing system is 2 3/16" deep. We recommend these windows for use in commercial medium to high rise buildings depending on performance criteria. These windows can be side stacked to form a continuous ribbon or stacked vertically. Any of the window configurations shown below can be manufactured from this system.

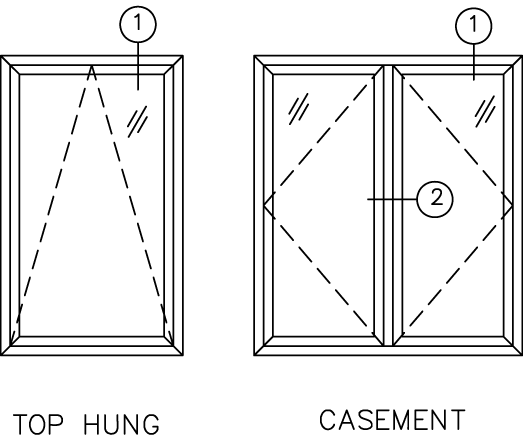

Configurations:

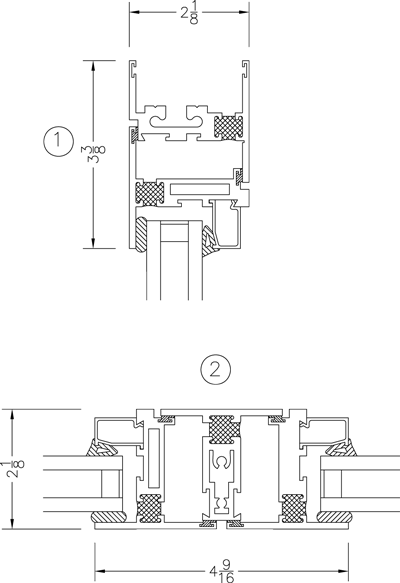

Details:

Performance P-A3

AIR INFILTRATION to .01 C.F.M./Ft.² at 6.24 P.S.F.

WATER RESISTANCE up to 10 P.S.F. — No entry

UNIFORM LOAD DEFLECTION not to exceed L/175

C.R.F. 55

Construction

Framing:

2" x 2 3/16" deep framing members. 6063-T5 extruded aluminum.

Hardware:

Four bar operating hinges. Cam-lock handles. Double weather seal.

Glazing:

Can accept up to 1" glass, or 1 1/4" panels. Glazing may be either inside or outside set.

Finish:

Available in all duronadic or painted finishes.

Options:

•	Screens
•	Sub-Frames
•	High Performance Sills
•	Panning System

Click Here for Full Specs

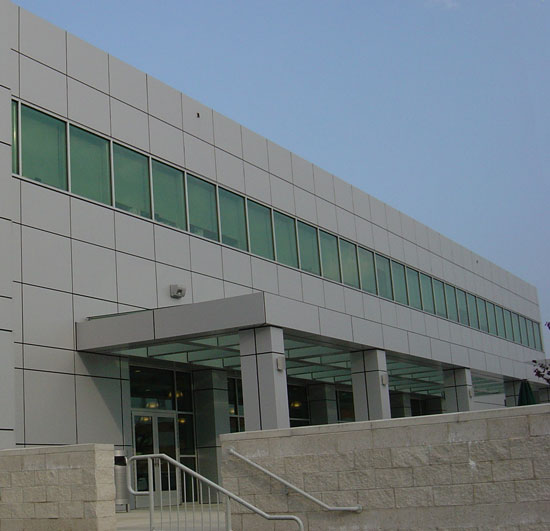

Series 200T Window System at Forest Labs

Forrest Labs; Commack, NY
Architect: Global Architects

^ To the Top ^

	Series 4000 Windows

Lynbrook's 4000 Series window is a 4" deep thermally broken framing member. This window features a 2" sight line on all members. Recommended use is for buildings requiring continuous horizontal strip windows or vertically stacked windows. Operable windows may be inserted into this system for various uses.

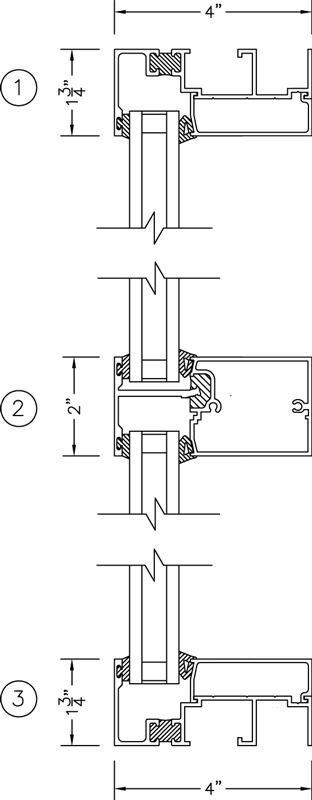

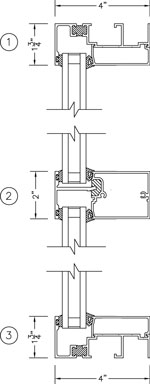

Details:

Performance

AIR INFILTRATION .02 C.F.M./Ft.² at 6.24 P.S.F.

WATER RESISTANCE up to 15 P.S.F. - No entry

UNIFORM LOAD DEFLECTION not to exceed L/175

C.R.F. 71

Construction

Framing:

2" x 4" deep framing members. 6063-T5 extruded aluminum. Wall thickness .093.

Glazing:

Can accept up to 1 1/2" thick glass. Up to 3" deep panels.

Finish:

Available in all duronadic or painted finishes.

Click Here for Full Specs

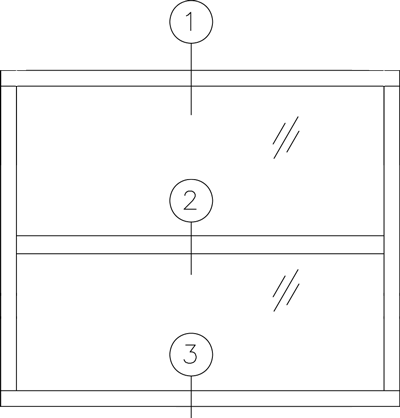

Elevation:

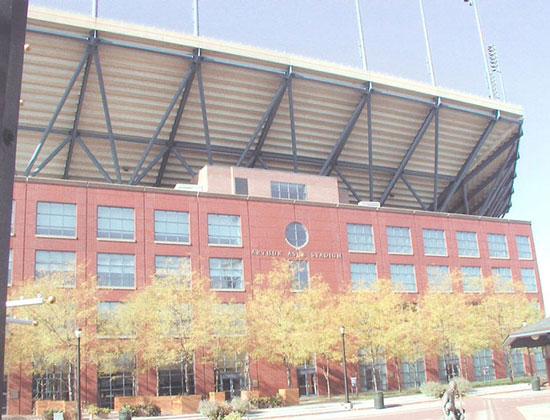

Arthur Ashe Stadium at USTA Tennis Center ; Flushing Meadows Park, NY
Architect: Rosetti Associates

^ To the Top ^

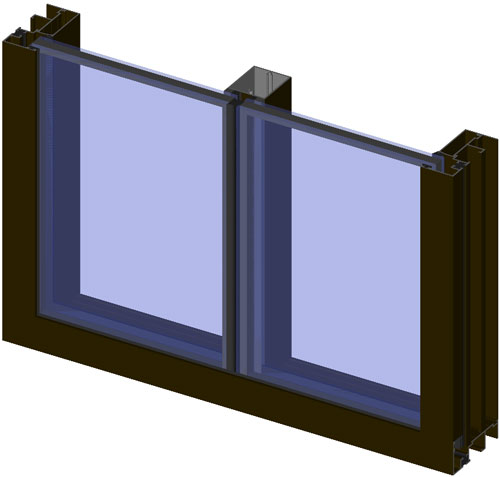

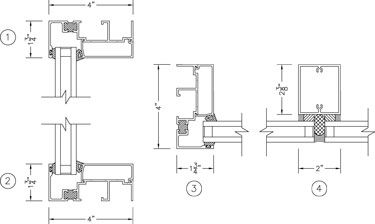

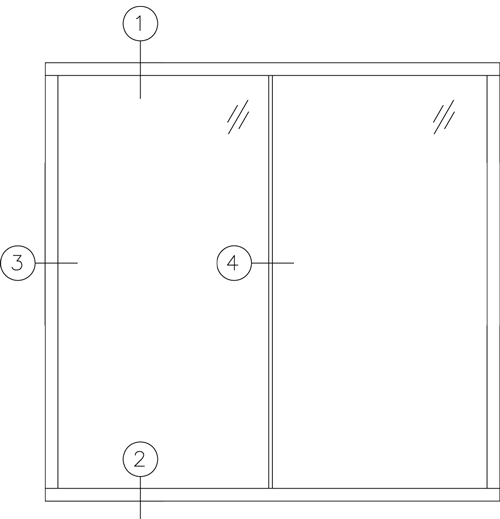

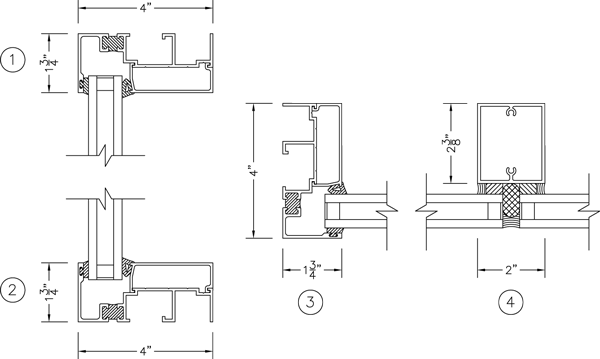

	Series 4000BG Butt Glazed Windows

Lynbrook's 4000BG butt glazed thermally broken system is 4" deep. This system is used where a continuous glass appearance is desired without the interruption of a vertical glazing member.

Performance

AIR INFILTRATION .02 C.F.M./Ft.² at 6.24 P.S.F.

WATER RESISTANCE up to 15 P.S.F. - No entry

UNIFORM LOAD DEFLECTION not to exceed L/175

C.R.F. 71

Construction

Framing:

2" x 4" deep framing members. 6063-T5 extruded aluminum. Wall thickness .093.

Glazing:

Can accept up to 1 1/2" thick glass. Up to 3" deep panels.

Finish:

Available in all duronadic or painted finishes.
